Pass 01 of 5
Aerial, oblique
The pass that shows how the roof sits on the building — planes, hips, valleys, and how it meets everything around it.
(214) 807-0414Request an assessmentModified bitumen · Irving
Low-slope membrane on an Irving mixed-use building
A stepped-parapet brick building with a roof drain and a service lane — a working commercial roof rather than a showpiece.
System Modified bitumenProperty CommercialViews 5
The five passes
The same five views, every time.
A roof assessed from one angle is a roof assessed once. These are the passes every Jacob assessment makes, in this order, so that coverage does not depend on how the day is going.
Pass 02 of 5

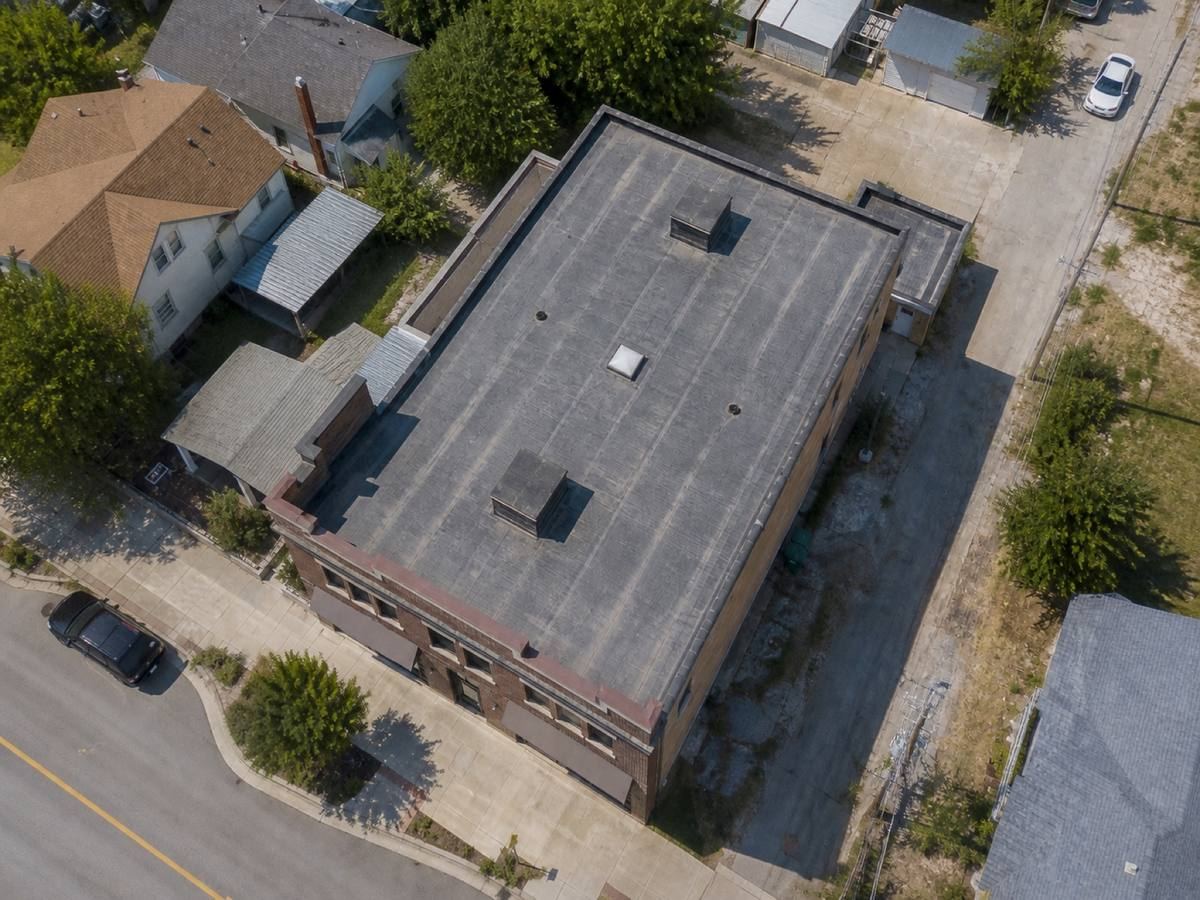

Aerial, plan
Straight down. This is the view that makes drainage legible and stops a plane being missed because it was awkward to reach.
Pass 03 of 5

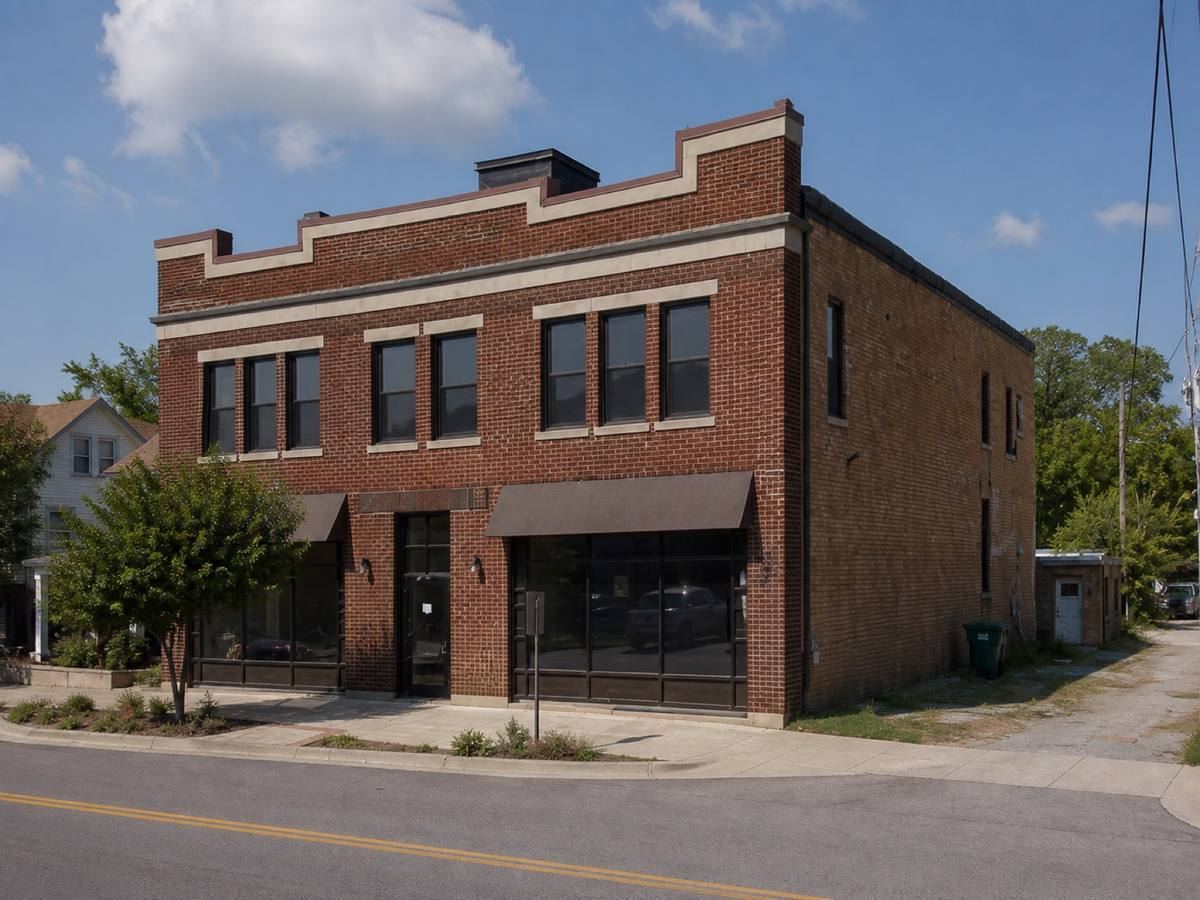

From the street
What the property actually looks like to a person standing in front of it — the only view most quotes are based on.
Pass 04 of 5
System detail
Close enough to read the assembly: courses, seams, terminations, penetrations. Findings are photographed at this range with something for scale.
On this roof: a roof drain set into the membrane field, with the surrounding sump and the clamping ring visible.
Pass 05 of 5

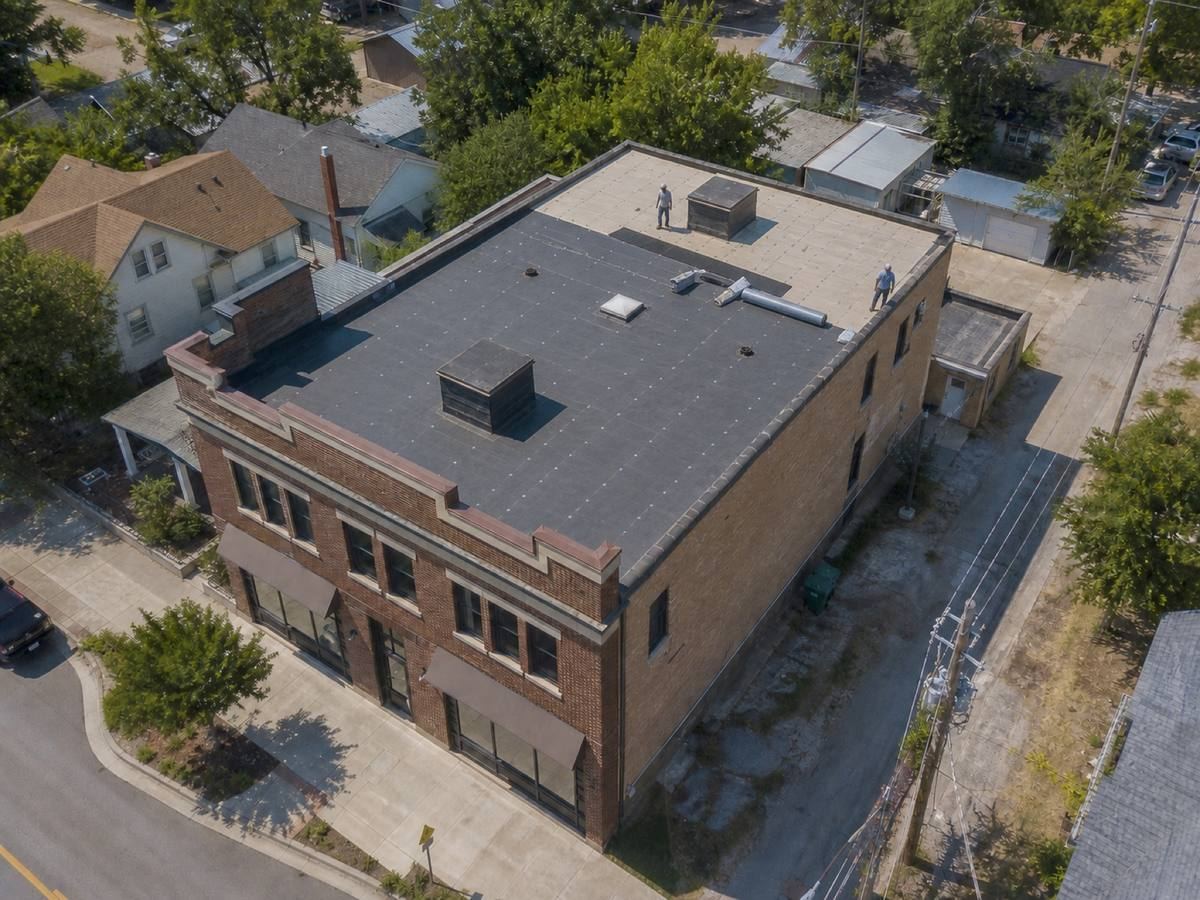

Work in progress
Mid-installation, where the parts that end up hidden are still visible. A roof is easiest to judge before it is finished.
What this roof raises
Three things a roof like this makes you check.
Every property puts its own questions in front of an assessor. These are the ones this system on this kind of house raises — and the same ones we would bring to yours.
01
A stepped parapet means the roof is really several roofs at different heights. Water that leaves one and lands on another concentrates in a way a single-level roof never does.
02
Internal drains are the whole system on a building like this. A blocked drain does not leak slowly — it loads the deck, and that is a structural question, not a covering one.
03
Commercial re-roofing usually has to be staged around a tenant who is still trading. That sequencing belongs in the scope from the beginning, because it changes both the programme and the price.
